› The fastest personal jet ‹

speed – range – freedom – grass airstrips take-off

› The fastest personal jet ‹

speed – range – freedom – grass airstrips take-off

› Flaris LAR 01 ‹

The first and only aircraft of its type in the world, FLARIS LAR 01 unites jet-tier performance with levels of safety and economic accessibility previously reserved solely for small general aviation units. The cutting-edge construction made overcoming many traditional limitations possible and resulted in creation of an internationally exceptional aircraft!

› Flaris LAR 01 ‹

The first and only aircraft of its type in the world, FLARIS LAR 01 unites jet-tier performance with levels of safety and economic accessibility previously reserved solely for small general aviation units. The cutting-edge construction made overcoming many traditional limitations possible and resulted in creation of an internationally exceptional aircraft!

› FEATURES ‹

FLARIS LAR 1 is a single-engine jet aircraft with lightweight, composite construction. It creates a new category of small, agile jets, ideal for quick movement for any purpose.

SOAR TO A HIGHER LEVEL OF COMFORT

The intuition of piloting FLARIS LAR 1 is apparent in its minimal operations, secure stall, and automatic spin recovery. The jet was designed to be flown by a single pilot (with Garmin G600 Txi radio and navigation system and FFAS® interactive onboard computer acting as a copilot). The only qualification required to fly FLARIS LAR 1 is a Private Pilot License (PPL).

REVOLUTIONARY AND ENVIRONMENTALLY FRIENDLY AVIATION

FLARIS LAR 1 is one tonne lighter than VLJ aircraft and initiates a brand new category of High-Speed Personal Jet. Light construction, extraordinary aerodynamics, and a cutting-edge FJ33-5A engine operated with an ECU computer allowed a significant reduction of fuel consumption and exhaust gas emission. Consequently, FLARIS LAR 1 is environmentally friendly.

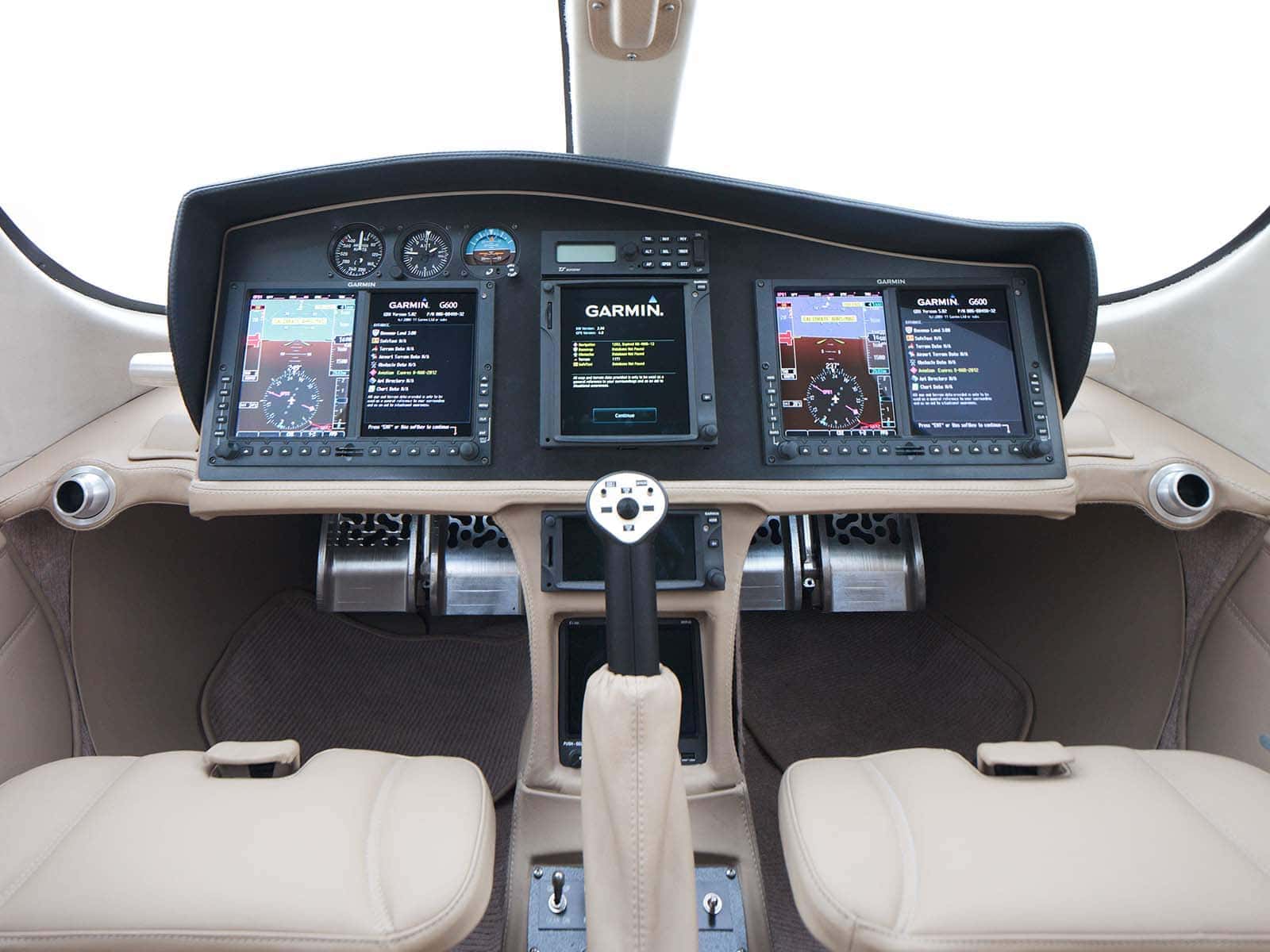

› COCKPIT ‹

FLARIS LAR 1 is equipped with a versatile Garmin G600 Txi radio and navigation system that acts as a copilot and minimizes the number of equipment distracting the pilot.

› SAFETY ‹

It is a light jet aircraft of a completely new type, being approachable for amateurs and satisfying the expectations of experienced pilots at the same time

LIFT-TO-DRAG RATIO

Thanks to its exceptional lift-to-drag ratio of 18 which is comparable to that of a glider and a drop-shaped semi-monocoque fuselage, FLARIS LAR 1 is able to glide 18 kilometers for every kilometer of altitude loss in a power-off setting. This gives the pilot a lot of time to find a landing site in case of emergency. Just a 250-meter-long grass airstrip will enable you to perform a safe landing, thanks to a solid landing gear.

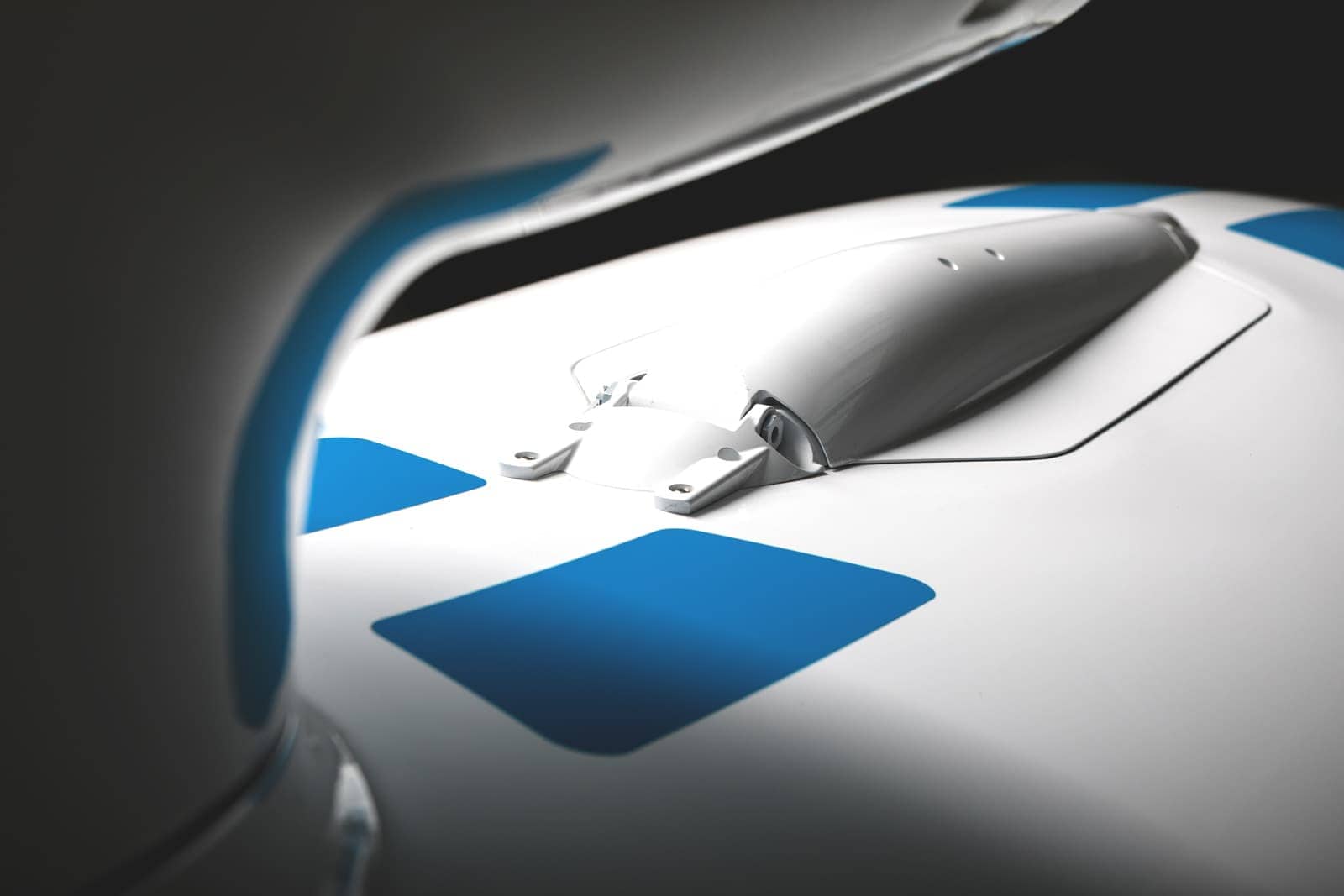

SAFETY SYSTEM

FLARIS LAR 1 is equipped with a modern parachute rescue system for the whole aircraft.

NAVIGATION SYSTEM

The avionic system of Flaris LAR uses a popular G600Txi system which provides maximal safety and convenience for the user. The GTN-750 navigation system (GPS) placed in the center of the dashboard, combines navigating function with operating additional devices, including a radio station and a transponder. It is equipped with a touch screen which helps to navigate a user-friendly icon menu.

› FUSELAGE ‹

FLARIS LAR 1 is ultra-light and durable thanks to its hybrid structure. It is made mostly of pre-impregnated carbon fibers, found in the most modern long-haul aircraft, like A350 or Dreamliner. To ensure highest durability and safety, the most vital large elements of the construction (wing spars, landing-gear struts, supports of control surfaces, etc.) are milled from aluminum, using numerical control technology.

› PROPULSION ‹

The solid and reliable FJ33-5 engine makes the Flaris jet safer than other light aircraft. Turbofan engines are much more reliable than reciprocating engines, and the FJ33 turbofan employed on Flaris is especially reliable due to its mature and robust design. The design of FJ33 is based directly on the larger FJ44 engine family which accumulated over 10,000,000 flight hours in total, so the engine concept has proven itself to be trustworthy. The titanium fan was proven so tough that Williams International covers foreign object damage (FOD) costs in its versatile and convenient engine maintenance program called TAP Blue.

UNYIELDING QUALITY

All parts and labor needed for the maintenance of FJ33 engine are provided by authorized service centers of Williams International. To enhance safety, all of our engines have been included in the Total Assurance Program (TAP Blue) by Williams lnternational. TAP Blue provides complete maintenance of the engine, and there are no added costs for the customer beyond a small fee per flight-hour, so the customers are keen to act quickly in bringing any concerns to the service center, and to keep all of their engine inspections up to date.

› EXTERIOR DESIGN ‹

Flaris LAR1 introduces new quality to private air transport. To complement the idea of creating means of private transportation, we encourage the owners to have their jet painted according to their personal preference, so the liveries highlight the private nature of the aircraft and manifest their personality.

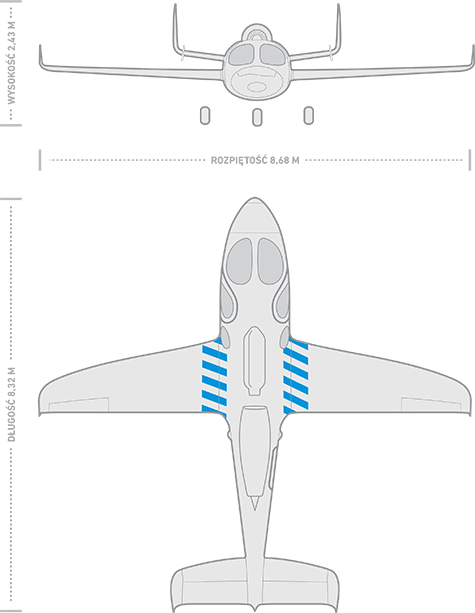

› SPECIFICATION ‹

Manufacturer

Metal-Master

Length

8,32 m / 27ft 4in

Height

2,43 m / 7ft 12in

Span

8,68 m / 28ft 6in

› SPECIFICATION ‹

Manufacturer

Metal-Master

Length

8,32 m / 27ft 4in

Height

2,43 m / 7ft 12in

Span

8,68 m / 28ft 6in

Specification

Number of seats

5 (1 pilot + 4 passengers)

Empty weight

900 kg

Takeoff mass

1850 kg

Power

Engine

Williams FJ33-5A

Static thrust

8,2 kN

Avionics

G 600 Txi System and FFAS® interactive onboard computer

Performance

Cruise speed

769 km/h

Stall speed

115 km/h

Service ceiling

7620 m

Range

max: 3200 km

Aerodynamics

L/D=18

› FLARIS & LAR 01 ‹

Flaris LAR 01 is an answer to the challenges of contemporaneity. It lets you forget about long and exhausting cruise flights, providing great economic value at the same time. Our design goal was to lower the purchase and exploitation costs to a minimum, which made our jet stand out among the competition. It is an ideal means of transport for business where time and comfort are as important as reasonable money management.
